ANXIN gives you the flexibility to source parts however you need. Get instant quotes and quickly order parts with on-demand manufacturing. Our team of experts will work with you for large or complex orders to develop, align, and supervise a manufacturing quality plan from start to finish.
The first step is cutting the metal sheet to the specified size with tools such as laser cutters or CNC plasma cutters. Once the size is right, the sheet is formed and bent into the desired shape using tools like press brakes or rollers.Finally, holes and other post-processing features are added as needed.
/ | Laser Cutting | Bending |
Material Thickness | Cut up to 20mm Steel/20mm Plastic/15mm Stainless steel/10mm Aluminum etc. | Bend up to 4mm Steel/Stainless steel/Aluminum/Brass etc. |
Length | Max 3000mm | Max 3000mm |
Width | Max 1500mm | Max 1500mm |
Tolerances | ±0.05mm | ±2° |
Below is a list of our standard available metals for sheet metal fabrication.

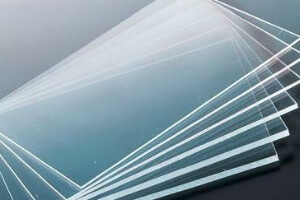

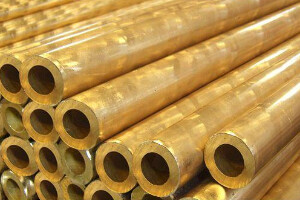

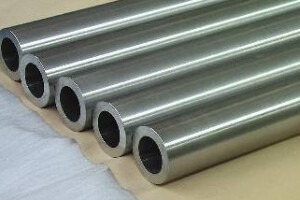

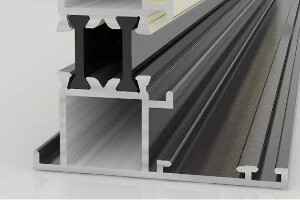

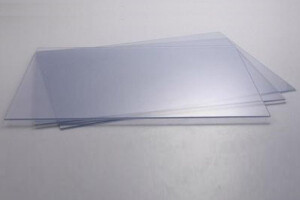

Stainless Steel/Steel/Aluminum/Copper/Brass/Plastic
Below is a list of the available finishes for sheet metal projects.
Anodize/Black Oxide/Brushing/Heat treatment/Plating/Engrave/Polishing/Powder Coating
1. Plastic Forming
Sheet metal processing can also be subdivided into fine-grain plasticity, phase change plasticity and other plasticity in this respect. Among them, fine-grain plasticity is a widely used one, but the premise is that it needs to have a certain heat resistance stability. The denaturation temperature needs to be higher than that of the material. The melting point temperature is higher.
2. Laser Shock
The laser shock technology of sheet metal processing is to shock the laser beam to the metal surface in a pulsed manner, which can be used for cutting and other operations to make the material plastically denatured.
3. Hydro-forming
The hydraulic forming technology of sheet metal processing uses oil as the pressure transmission medium, and the hydraulic bladder is used to carry out two kinds of elastic dies or punches, and the forming is carried out through this operation and process.
